High Efficiency 1kw Home Solar Power System For Lighting

Name: High Efficiency 1kw Home Solar Power System For Lighting
Brand: AoYin
Price: 45 USD

High Efficiency 1kw Home Solar Power System For Lighting Manufactures

Brand Name : AoYin

Model Number : AY-1000WM

MOQ : 1-50

Price : 45-150$/Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30000Sets/Month

Delivery Time : 25days

Packaging Details : wooden carton

Solar panels : 21% high conversion rate of monocrystalline silicon

Inverter : Pure sine wave inverter

Accumulator : Lead-acid colloid, maintenance-free, sufficient capacity, not a false standard

Solar Controller : MPPT maximum power point tracking

Solar stent : Hot-dip galvanized photovoltaic

Cable : Reliable and durable

Contact Now

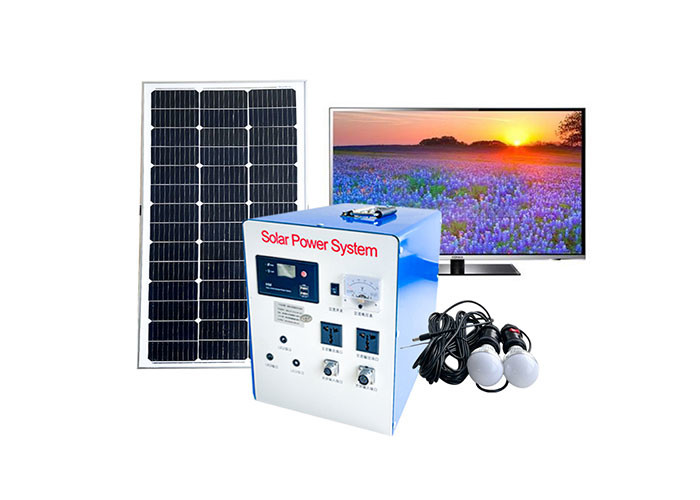

1 KW Home Solar Power System

Introduction

The household solar power generation system consists of a solar battery group, a solar controller, and a battery (group).If the output power supply is AC 220V or 110V, an inverter is also required.

Parameter table

1KW solar power system
product name	Package 1 (simple configuration)	Package 2 (medium configuration)	Package 3 (high configuration)
Solar panels	36V300W*1	36V300W*2	30V270W*4
Accumulator	12V100AH*1	12V100AH*2	12V200AH*2
Controller	12V30A	24V30A	24V50A
Pure sine wave inverter	12V1000W	24V10000W	24V1000W
Photovoltaic cable + MC4 connector	Standard 100 meters of red and black wires 4㎡+4 sets (can be matched according to customer needs)
Solar panel bracket	Due to the different installation angles of the roof and ground, the bracket can be customized
Solar panels generate electricity approximately	1.2kW.H	2.4kW.H	4.8kW.H
Battery storage capacity is about	1.2kW.H	2.4kW.H	4.8kW.H
Battery discharge capacity is about	1.0kW.H	1.9kW.H	3.8kW.H
Remarks: The power generation of each region will be affected by the conditions of the intensity of light. The above data is for reference only, in order to meet the diversified needs of customers.You can also consult customer service to customize the solar power system plan for you according to your needs

The Loading Of 1KW Solar Power System

1KW daily home appliance load usage (Note: The following load usage conditions are tested separately when the power generation reaches 4 kWh, and the data is for reference only. Daily power generation: about 4 kWh (calculated based on effective light for 5 hours))
Electrical appliances	Power (W)	Independent use time (H)
Rice cooker	500W	3-4.5H
washing machine	250W	9H
refrigerator	200W	9H
TV	100W	24H
illumination	50W	10H
Note: 1. The inverter has sufficient power output, and the cumulative use function of the above appliances shall not exceed 1KW (inductive load discharge 3-5 times the power) 2. The above electricity consumption is only a reference value. We cannot promise and guarantee that power generation in various regions will be affected by light conditions. There will be slight differences, please be aware!

Production Process

1. Solar panel: positive A-level monocrystalline solar panel
2. Gel battery: solar energy dedicated maintenance-free battery, with sufficient capacity, excellent low temperature performance, and 50% increase in service life
3. Controller: Enhanced version of high-power solar controller
4. Inverter integrated inverter: intelligent switching of city power, strong load, stable power supply
5. Photovoltaic bracket: 2.0mm C-type material for hot-dip galvanized photovoltaic, with outstanding anti-corrosion and anti-rust ability

High Efficiency 1kw Home Solar Power System For Lighting
